Do you think the biggest risk of cross-border audiovisual projects is installation errors? In thousands of overseas projects we’ve worked on, 90% of project after-sales disasters stem from choosing a projection screen factory with an incomplete quality control system. A screen with hidden defects shipped to project sites in Europe, the US, or the Middle East can bring cross-border rework costs 5 to 10 times the value of the screen itself.
You might not know that a premium hotel project has its final payment deducted by the client because the screen edges curled just 3 months after handover; a commercial cinema has to suspend business for rectification due to irreversible wavy patterns on the screen after opening; a bulk overseas education project fails acceptance directly because the optical parameters of the 100-piece order are uneven. These headaches for integrators are essentially not caused by installation, but by fatal loopholes in the quality control process at the manufacturing end.
1. Engineering-Grade Screen Substrate Admission Standards: Why Do Elongation and Thermal Stability Determine Project Success?
Frankly, many small production facilities cut PVC/PET rolls directly upon arrival, skipping even the most basic batch testing, which is why screens in the same order can show completely different deformation performance. For the stringent requirements of overseas projects, we have established a comprehensive substrate admission standard. Each roll of substrate must pass three core tests before entering the production process.
The first is the commercial projection screen substrate elongation standard test. Instead of only simple horizontal and vertical testing, we take 3 parallel samples every 50 meters from the roll, and conduct full-stroke deformation tests with a universal tensile machine in three directions: horizontal, vertical, and 45-degree oblique. Only substrates with elongation at break controlled within 0.5% in all three directions can be released. For wide-format engineering screens commonly used in overseas projects, uneven oblique elongation will directly lead to diamond-shaped distortion after installation, which cannot be completely corrected even with a later tab-tensioning system.
The second is cinema-grade projection screen thermal stability testing. For projects in high-temperature regions such as the Middle East and Southeast Asia, we have upgraded the test standard to 120 hours of continuous exposure to simulated laser projector strong light in a 60℃ environment, requiring the thermal shrinkage rate of the substrate to be ≤0.3%, with no local bulging and no coating peeling off. Ordinary production facilities only do qualification tests at room temperature, and never consider the local high temperature caused by the continuous heating of the projection light source, which is the core reason why many screens develop wavy patterns after half a year of use.
The third is compliance and coating consistency testing. Each batch of substrates is tested for optical coating uniformity, with gain value deviation controlled within ±0.05. At the same time, it must pass RoHS and REACH environmental standard tests, and the fire-retardant coating meets the requirements of overseas project projection screen fire safety certification including NFPA 701 and CE EN 13501-1. Corresponding compliance reports can be issued for each batch to meet the mandatory requirements for overseas project bidding and customs clearance.
2. Constant Temperature & Humidity Production Control: Why Is Internal Stress Relief the Core of Long-Term Screen Flatness?
The flatness of a screen is never achieved by forcibly tightening the tab-tensioning system later. Put it another way, without a stable production environment, even the most sophisticated equipment cannot produce a consistently flat screen surface for long-term use.
Our production workshop maintains a constant temperature of 22±2℃ and constant humidity of 55±5% throughout the process. After all substrates enter the factory, they must stand in the workshop for more than 72 hours to fully release the internal stress generated during raw material production and long-distance transportation before cutting. Many non-standard OEM/ODM suppliers cut the material directly when the rolls arrive, without releasing the internal stress. Even if the finished screen looks flat when leaving the factory, it will have irreversible shrinkage and deformation after experiencing temperature and humidity changes in the container when shipped overseas.
In the cutting process, we use fully CNC cutting equipment with a dimensional error controlled within 0.5mm. For laser perforation of acoustically transparent screens, the hole position deviation is ≤0.02mm, ensuring uniform sound attenuation across the full screen, which meets THX and ISF acoustic standards. For large engineering screens with a width of more than 8 meters, we use engineering-grade projection screen high-frequency welding process to process the seams. The welding temperature, pressure, and speed are fully controlled by a CNC closed loop. The tensile strength of the welded seam is ≥98% of the substrate itself. After welding, a 72-hour pre-tension test is carried out to simulate the long-term tension state after installation, ensuring that the seam has no curling, no deformation, and no visible splicing traces to the naked eye.
For the special scenario of long-distance overseas shipping, we have also added a projection screen shipping deformation prevention pretreatment link. When the finished screen is rolled, it uses a thickened stress-release paper tube as the inner core, with vacuum moisture-proof packaging and a built-in humidity indicator card to monitor the environment inside the package throughout the process. At the same time, pre-shrinkage treatment is done in advance to ensure that the product remains stable when placed in a 60℃ high-temperature and high-humidity container for 30 days.
3. Finished Product Full Performance Verification: How Do Laser Inspection and Shipping Pretreatment Avoid Cross-Border After-Sales Risks?
After the finished product is off the production line, we will not only do a simple appearance inspection. The ZSM Quality Center has established a full set of testing systems covering flatness, optical performance, and environmental reliability, to ensure that every screen leaving the factory can meet the stringent requirements of overseas projects.

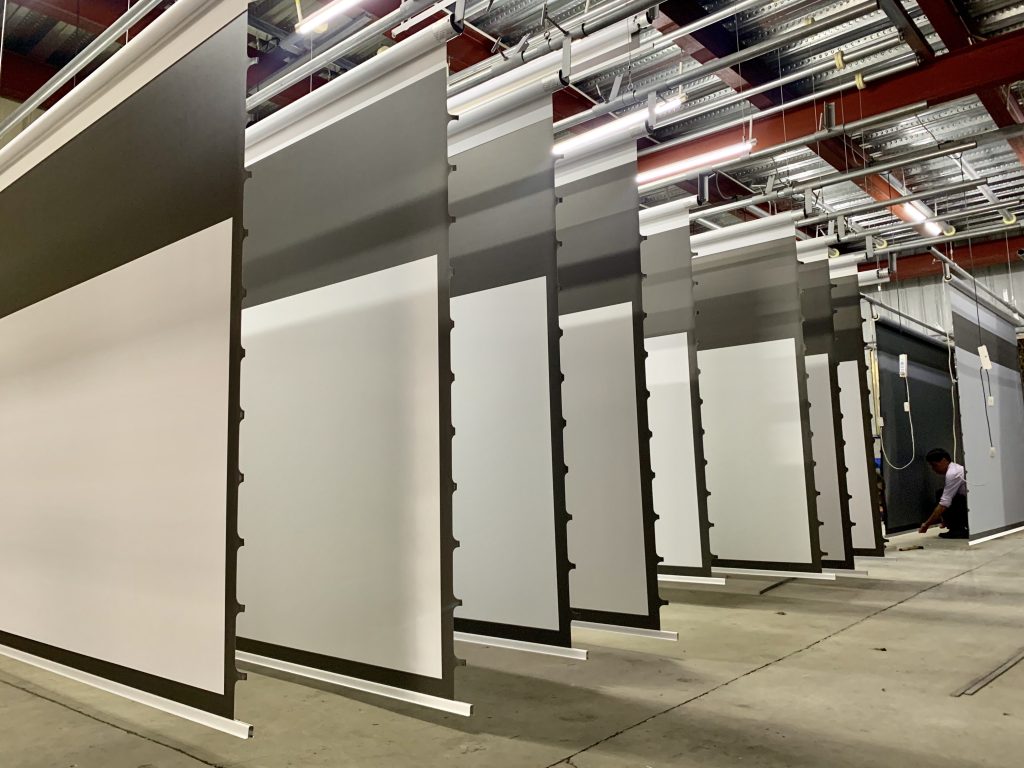

For tab-tensioned screen products, we adopt the tab-tensioned screen tension calibration process, setting a calibration point every 10cm, adjusting the tension coefficient of the side cables point by point, completely eliminating V-shape and U-shape deformation, and ensuring that the stress on every part of the screen surface is completely uniform. Then we use projection screen flatness laser inspection equipment to scan the full frame, setting 100 sampling points within 1 square meter, with the flatness error controlled within 0.2mm per meter. Even for a 15-meter-wide large engineering screen, the full-screen flatness error will not exceed 1mm.
In terms of optical performance, we use a professional luminance meter to carry out 9-point and 13-point layered sampling (adjusted according to the screen size), to ensure that the full-screen gain uniformity is ≥92%, the viewing angle deviation is ≤10%, and the ambient light rejection rate of the anti-light screen is ≥85%, which perfectly adapts to the use needs of long-throw, short-throw, and ultra-short-throw laser projectors. For batch-customized projection screen optical consistency control, we will lock the substrate batch of the entire order, fix the production equipment parameters throughout the process, and conduct full optical testing on each screen, to ensure that the gain deviation of the same batch of products is ≤±0.05. Even for a 200-piece bulk order, the picture performance of the first piece is exactly the same as that of the last piece.
We also take 3% of the products from each batch for environmental cycle reliability testing, simulating the use scenarios in different regions of the world: stored at -20℃ low temperature for 2 hours → stored at 60℃ high temperature and high humidity for 2 hours, after 10 cycles, the flatness change is ≤0.3mm/m, and the optical parameter change is ≤5%, ensuring that the product can adapt to extreme environments such as the severe cold in Northern Europe, the intense heat in the Middle East, and the high humidity in Southeast Asia.
Each screen leaving the factory has a unique traceability code, corresponding to the substrate batch, production equipment, inspector, and full inspection report. Overseas customers can check the complete quality control process data through the traceability code, which meets all the requirements for project audit and compliance acceptance.
4. Must-Know for Overseas Project Sourcing: 5 Core Verification Nodes of OEM/ODM Supplier QC System
Full test report of substrate elongation and thermal stability for the batch, not just general material specification documents
Whether the production workshop has a constant temperature and humidity environment, and a standardized process for substrate standing to release internal stress
Whether the finished product has passed the shipping environment simulation test, and has a corresponding anti-deformation pretreatment plan for long-distance transportation
Whether it can provide fire safety and environmental compliance reports for each batch of products, meeting the mandatory access requirements of the project location
For batch customization, whether there is a clear optical parameter consistency control standard to ensure no performance deviation of the same batch of products
Core Control DimensionStandard Commercial Production Facility StandardZSM High-End Engineering Manufacturing StandardSubstrate Elongation ControlHorizontal & Vertical ≤2%, no oblique test3 Directions (H/V/45°) ≤0.5%, full inspection per rollThermal Stability TestQualified at room temperature, no high-temperature & high-humidity test120h strong light exposure at 60℃, thermal shrinkage ≤0.3%Screen Flatness Tolerance≤1mm/m, only core area sampling inspectionFull-frame laser scan, ≤0.2mm/m, full-screen error ≤1mmOptical Gain Uniformity≥75%, batch sampling inspection≥92%, full inspection per screen, same batch gain deviation ≤±0.05Overseas Compliance CoverageOnly provide copies of general certificationNFPA 701/CE/RoHS/REACH compliance reports available per batchShipping AdaptabilityNo pretreatment, ordinary carton packagingVacuum moisture-proof + stress-release packaging, shipping environment cycle test qualifiedBatch Consistency ControlNo batch locking, unlimited parameter deviationSame batch substrate locked, 200-piece order parameter deviation ≤5%Service Life Expectancy3-5 years8-12 years, 5-year global quality warranty
Sourcing Q&A
Q: How can I judge from the supplier's QC report whether the screen will yellow and age after 1-2 years of use?
A: There are two core test items to check. The first is the UV aging test report. A qualified engineering-grade screen has a yellowing index ΔE ≤3 after 500 hours of UV accelerated aging test, which is almost invisible to the naked eye. The second is the raw material purity of the substrate. The anti-aging performance of substrates made of brand-new PVC/PET particles is more than 3 times that of recycled materials. We conduct UV aging tests on each batch of substrates, and only use brand-new imported raw materials to ensure that the screen will not yellow or age during long-term use.
Q: My project is in the Middle East, where the ambient temperature exceeds 50℃ in summer. What special controls should an OEM/ODM supplier implement to avoid screen deformation?
A: For projects in high-temperature regions, we implement three special controls. First, we select special high-temperature-resistant substrates with a thermal deformation temperature ≥80℃, which is 30℃ higher than ordinary substrates. Second, we upgrade the thermal stability test to 168 hours of continuous strong light exposure at 70℃ to ensure no shrinkage or bulging. Third, we perform high-temperature pre-calibration on the tension coefficient of the tab-tensioning system, so that the screen surface tension remains uniform even if the ambient temperature fluctuates by more than 30℃, and no wavy patterns will appear.
Q: For bulk customization of hotel/education projects, how do you ensure that the optical parameters and flatness of the 1st screen are exactly the same as the 200th?
A: The core is full-process standardization + batch locking. First, all substrates for the entire order are locked to the same batch and the same production line, avoiding parameter deviations from the source. Second, the parameters of the production equipment are locked throughout the process, and the parameters of CNC cutting, welding, and coating processing remain unchanged. Finally, each screen undergoes full optical and flatness testing, with the gain deviation of the same batch ≤±0.05 and the flatness deviation ≤0.1mm/m. Even for a 200-piece bulk order, the performance of each screen is exactly the same.
Q: My overseas project requires NFPA 701 fire safety certification. Can you provide the compliance report for the corresponding batch? Will it affect the delivery lead time?
A: Absolutely. All our substrates have passed NFPA 701 and CE EN 13501-1 fire safety certification in advance, and each batch of substrates has a corresponding test report. After the order is confirmed, we can provide the compliance report for the batch of products along with the goods, which will not affect the delivery lead time at all. At the same time, we can also provide special test reports from third-party institutions according to project requirements, to meet the fire safety compliance requirements of different regions around the world.
Q: Shipping to Europe and the US takes 4-6 weeks. How do you prevent the screen from getting damp and deformed in the container?
A: We have optimized this problem for nearly 10 years and have formed a mature solution. First, the finished screen is packaged in vacuum moisture-proof packaging with a built-in humidity indicator card to monitor the humidity inside the package throughout the process. Second, we use a thickened stress-release paper tube for rolling to avoid internal stress changes caused by bumps during transportation. Finally, we conduct a shipping environment simulation test before shipment to ensure that the product has no obvious changes in flatness and optical parameters after being placed in a 60℃ high-temperature and high-humidity environment for 30 days. Our products have been exported to more than 30 countries and regions around the world, and there has never been a product deformation problem caused by shipping.
As a projection screen factory with nearly 10 years of experience in the mid-to-high-end projection screen field, ZSM Guangzhou has served audiovisual integrators and engineering contractors in more than 30 countries and regions around the world. Our full-process QC system requires 18 inspection procedures for each screen from substrate incoming to finished product delivery, just to ensure that the products received by overseas customers can perfectly adapt to the climate of different regions and the needs of different scenarios, without high cross-border after-sales costs caused by quality control issues. If you have needs for engineering-grade projection screen customization, or want to know more quality control details for overseas projects, you can communicate with us at any time.
