Have you ever found yourself sitting in a movie theater, mesmerized by the larger-than-life, vibrant image on the screen? Or perhaps you’ve been in a modern classroom, where a projected presentation holds your attention like a magnet. Maybe it was during a high-stakes business pitch, and the projected visuals seemed to leap off the display. That enchanting experience isn’t solely the work of the projector. It’s a harmonious interplay between the light engine and its perfect match: the projection screen. As a custom projection screen manufacturer, we understand that grasping the nuances of projectors is the first crucial step in selecting the right screen.

Today’s projectors are engineering marvels, built primarily on three core display technologies. Let’s lift the veil and uncover how they operate.

The Three Pillars of Projection Technology

1. LCD (Liquid Crystal Display) Projection: The Color Virtuoso

Picture thousands of minuscule, liquid crystal shutters. That’s the heart and soul of an LCD projector. These crystals don’t generate light on their own; instead, they act as precise gatekeepers, controlling how much light from a powerful lamp passes through red, green, and blue panels.

Imagine you’re in a dimly lit room, watching a movie projected by an LCD projector. The projector starts up, and a bright light source is split into the three primary colors: red, green, and blue. Each color beam then travels through its dedicated LCD panel. Here, pixels open and close based on the video signal, much like tiny doors opening and closing to let light in or keep it out. After that, the three colored images are perfectly recombined by a prism and projected through the lens onto the screen, creating a vivid and colorful picture.

The Latest Scoop: Modern 3LCD projectors have largely overcome early issues like the “screen-door effect,” where you could see the gaps between pixels, almost like looking through a screen door. These projectors are now renowned for their exceptional color brightness and accuracy. This makes them a top choice for home cinemas, where accurate colors can transport you into the movie, and for color-critical creative work, like graphic design and video editing. Moreover, their light efficiency is excellent, often requiring less power to achieve the same brightness as other technologies.

2. DLP (Digital Light Processing) Projection: The Digital Speedster

Pioneered by Texas Instruments, DLP is an all-digital, reflective technology. Instead of liquid crystals, it uses a microscopic chip covered in hundreds of thousands or even millions of tiny mirrors, with each mirror representing a single pixel.

Let’s say you’re in a business conference room, using a DLP projector for a presentation. Each microscopic mirror on the DLP chip tilts towards the lens to create a bright pixel or away from it to create a dark one, thousands of times per second. This rapid tilting creates shades of gray. Color is typically added by a spinning color wheel placed between the lamp and the DLP chip. In newer laser-based DLP models, a sequence of colored lasers is used instead of a wheel, providing even more precise color control.

DLP projectors are famous for their razor-sharp images, high native contrast ratios, and smooth motion handling. This makes them ideal for watching fast-paced action movies or playing video games. They are often more compact and resistant to issues like dust alignment, which can be a problem in some projectors over time. This makes them popular for portable business projectors, allowing you to take your presentations on the go, and for modern home entertainment systems. Some viewers might notice a “rainbow effect,” where they see brief flashes of color, but this has been significantly reduced in newer models.

A Quick Comparison Table (2024 Landscape)

3. LCoS (Liquid Crystal on Silicon): The Hybrid Powerhouse

While the original text mentioned CRT (which is now a legacy technology), the true third contender in today’s market is LCoS. Think of it as the best of both worlds: it uses liquid crystals like LCD, but reflects light off a mirror-like surface like DLP.

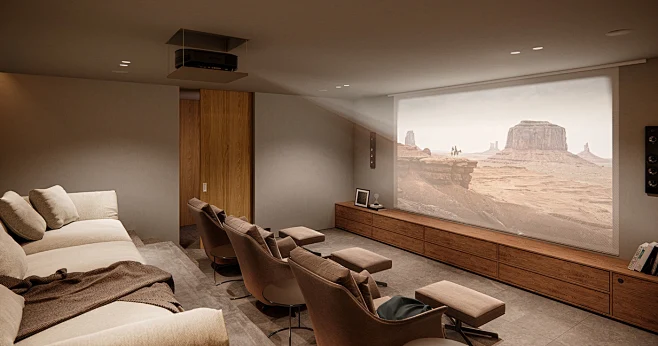

Imagine you’re in a high-end home theater, watching a blockbuster movie on an LCoS projector. A reflective mirror sits behind a liquid crystal layer. Light enters the projector, passes through the crystals, reflects off the mirror, and then passes through the crystals again on its way out. This dual-pass system allows for exquisite control over each pixel, resulting in a stunningly detailed image.

The Latest Scoop: LCoS technology, is celebrated for producing the highest native resolution and the deepest black levels available in the consumer market. They virtually eliminate the screen-door and rainbow effects, resulting in an incredibly smooth, “film-like” image. These projectors are typically the premium choice for high-end home theaters, where you want the most immersive and cinematic experience possible.

Let’s Talk Brightness: What is ANSI Lumens, Really?

You’ll see this term on every projector spec sheet. In simple terms, ANSI Lumens is the standardized measure of a projector’s brightness. The process is quite specific: a white image is projected, and the brightness is measured at nine specific points on a one-square-meter screen. The average of these nine points is the ANSI Lumen rating.

Why it matters: More lumens are needed for rooms with ambient light. For example, in a brightly lit conference room, you’ll need a projector with higher lumens to ensure the image is still visible. On the other hand, a dimmable, lower-lumen projector (1,500 – 3,000 lumens) is perfect for a controlled, dark home theater, where you can create the ideal viewing environment. Today’s projectors are brighter than ever, with high-end models reaching 8,000+ ANSI Lumens for large venue use, like in auditoriums or outdoor events.

Q&A: Projector Puzzles!

Q: If my projector is so bright, why does the image look washed out in my sunny living room?

A: This is where your screen comes into play! A standard white screen acts like a blank canvas, reflecting all light, including the sunlight that washes out your image. Imagine trying to paint a picture on a canvas that’s being bombarded by sunlight from all directions; the colors will look faded and washed out. The solution? An ambient light rejecting (ALR) screen. ALR screens are engineered with special optical layers to only reflect light coming from the projector’s specific angle while absorbing light from other angles, like overhead lights or windows. It’s the single best upgrade for a room that can’t be completely darkened, allowing you to enjoy a clear and vibrant image even in a well-lit space.

Q: I see 4K, UHD, and 1080p. What’s the real difference for screen size?

A: Resolution is all about pixel density. On a massive screen (say, 120 inches diagonally), a 1080p image might start to look soft if you sit close. It’s like looking at a large poster with a relatively low number of dots per inch; the image won’t be as sharp. 4K, on the other hand, packs four times as many pixels into the same space, creating a drastically sharper and more detailed image, even from a few feet away. It’s like looking at a high-resolution photograph where you can see every tiny detail. The good news? A high-quality screen will reveal the full sharpness of your projector, whether it’s 1080p or 4K, ensuring you get the most out of your viewing experience.

The Unsung Hero: Your Custom Projection Screen

Think of your projector as a world-class artist and the signal as its inspiration. The screen? That’s the canvas. And not all canvases are created equal. The right screen material can dramatically enhance contrast, improve black levels, widen the viewing angle, and ensure color accuracy.

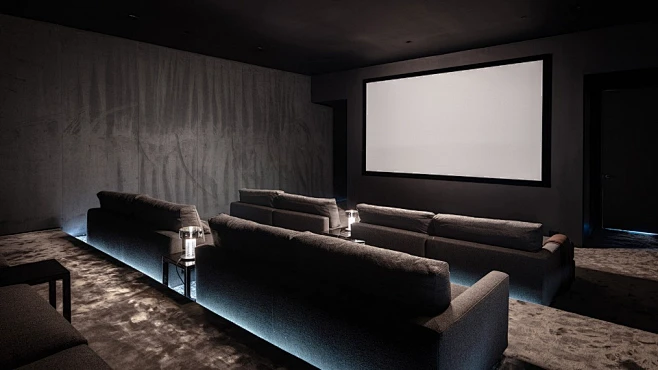

This is where customization is key. The perfect screen for a dedicated, pitch-black home theater (a high-contrast gray screen) is different from the ideal screen for a bright digital signage application (a high-gain ALR screen). In a home theater, you want a screen that can reproduce deep blacks and vibrant colors, while in a digital signage setting, you need a screen that can handle bright ambient light and still display clear images.
